Reducing Tee – 13mm to 4mm Connector

Description

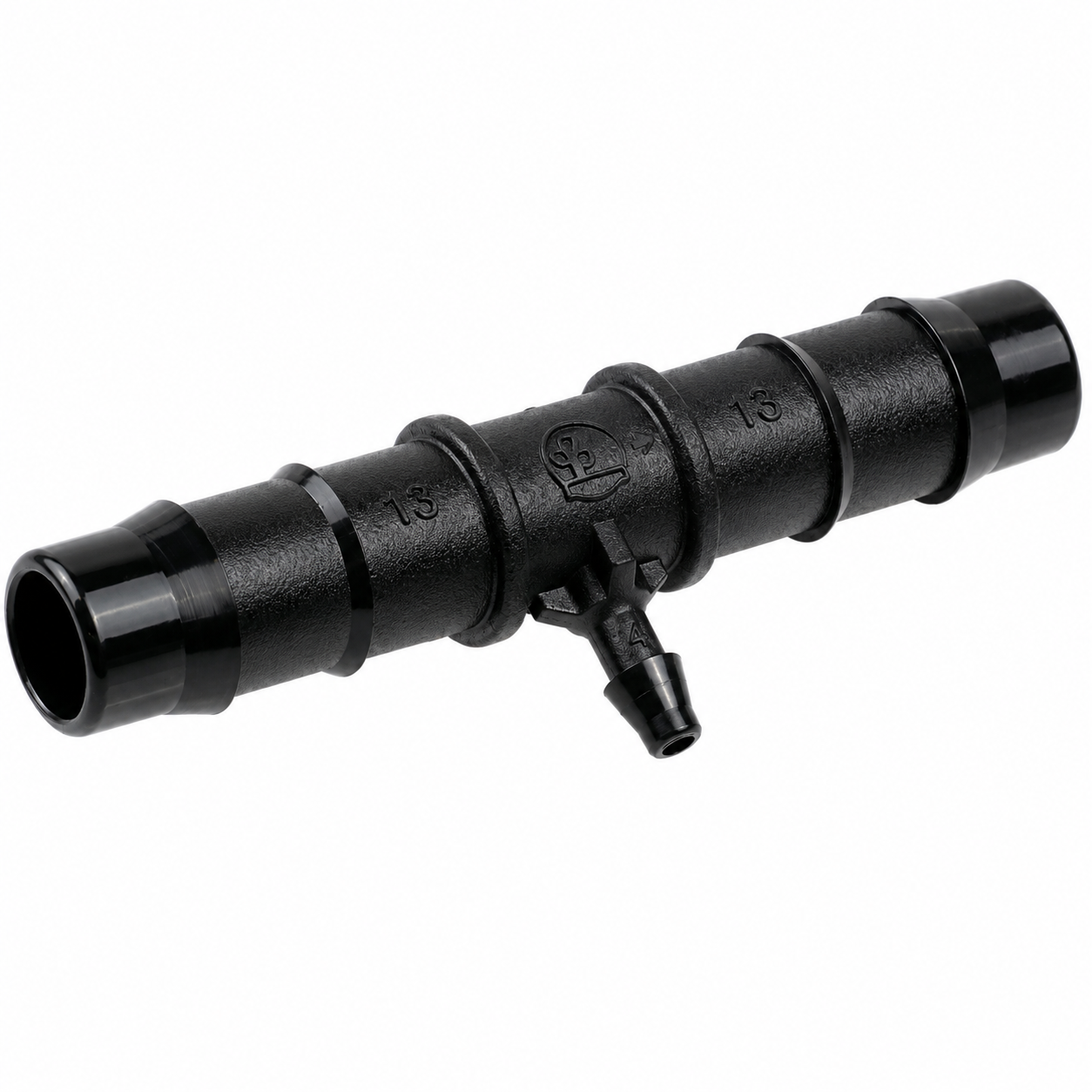

Antelco 13mm × 13mm × 4mm Reducing Tee (47765)

The genuine Antelco 47765 Reducing Tee provides a simple and reliable way to add a 4mm micro irrigation branch to a 13mm LDPE supply line. Installed in-line, it creates a secure connection without the need to puncture the main pipe, making it an excellent choice where long-term reliability is important. Manufactured in Australia from UV-stabilised acetal thermoplastic, the reducing tee features Antelco’s double-barbed design for excellent pipe retention and dependable performance in low-pressure irrigation systems.

• Genuine Antelco 47765 reducing tee.
• Creates a permanent 4mm branch from a 13mm supply pipe.
• Double-barbed connections provide excellent pipe retention.
• Manufactured from UV-stabilised acetal thermoplastic (POM).
• Designed for long-term outdoor use.
• Suitable for operating pressures up to 300 kPa.

Typical Applications

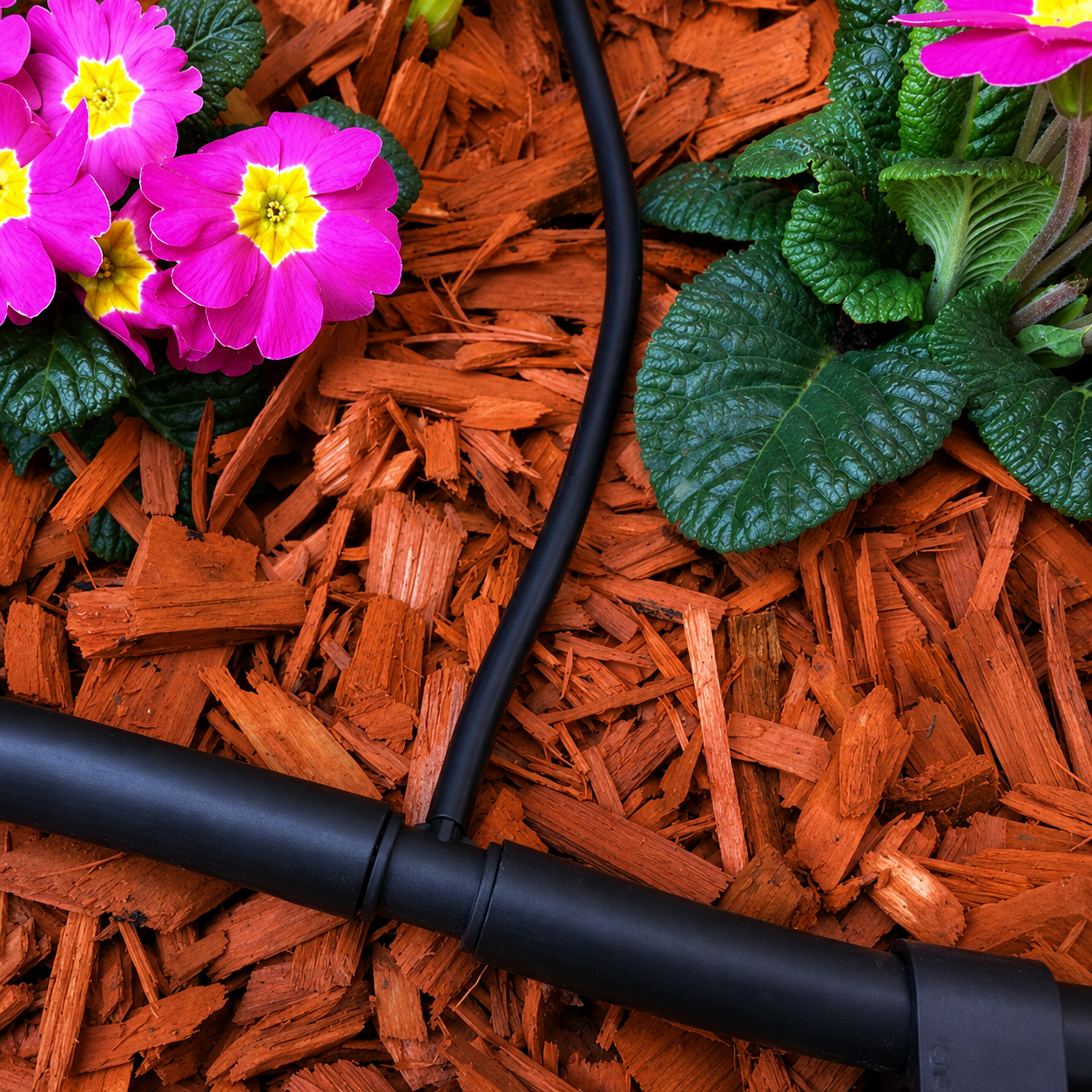

• Adding 4mm micro irrigation tubing to a 13mm LDPE supply line.
• Supplying drippers, micro sprays and misters.
• Home gardens, raised beds, landscaping and greenhouse irrigation.
• Ideal where a more secure connection is preferred over a punched off-take.

Compatibility

• 13mm ID (16mm OD) LDPE irrigation pipe.
• Standard 4mm ID (6mm OD) micro irrigation tubing.
• Compatible with Antelco and other irrigation systems using the same pipe sizes.

Installation

1. Cut the 13mm supply pipe at the required location.
2. Push both ends of the reducing tee fully into the 13mm pipe.
3. Connect the 4mm micro irrigation tube to the reducing outlet.
4. Continue the 4mm tubing to your chosen dripper, spray or emitter.

Professional Applications Where maximum reliability is required, many professional installers choose an in-line reducing tee instead of a punched off-take. Because the branch is formed from a full in-line fitting rather than through the wall of the pipe, the connection can provide greater resistance to movement and pressure fluctuations.
