Description

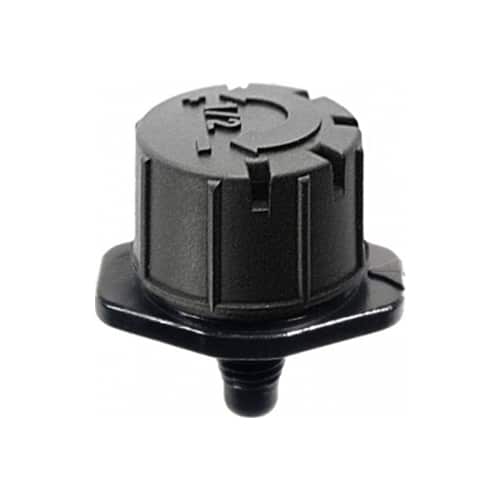

Antelco Shrubbler® 180° Threaded Emitter with 4mm Barb
The original patented Antelco Shrubbler® provides fully adjustable 180° watering for borders, planter boxes and areas where a half-circle spray pattern is required. Featuring a threaded base with an integral 4mm barb, this model is designed for installation into compatible Antelco Asta® Stakes, rigid risers and other threaded irrigation fittings. Fingertip flow control allows the water output to be adjusted from shut-off, through drip irrigation, to a gentle 180° spray pattern. Manufactured in Australia from UV-stabilised materials, the Shrubbler® is designed for reliable long-term outdoor use. Antelco Part Number: 31215See It In Action

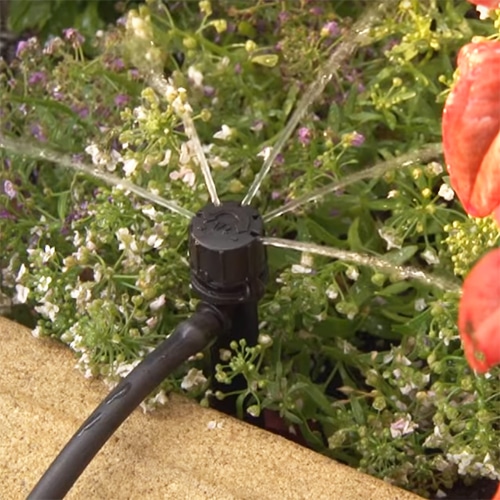

See how the Antelco Shrubbler® adjusts from shut-off, through drip irrigation, to a controlled 180° spray pattern.
Video opens on YouTube in a new window
Features
- Original patented Antelco Shrubbler®.
- Antelco Part Number: 31215.
- 180° adjustable spray pattern.
- Threaded model with integral 4mm barb.
- Designed for installation into compatible Antelco Asta® Stakes, rigid risers and other threaded irrigation fittings.
- Fingertip flow control from shut-off, through drip irrigation, to a 180° spray pattern.
- Flow rate up to approximately 33 litres per hour at 1 bar.
- Approximately 40cm spray diameter at 1 bar.
- Manufactured from UV-stabilised materials for long outdoor service life.
- Designed and manufactured by Antelco in Australia.
Common Uses
- Garden borders and edge planting.
- Planter boxes and raised beds.
- Pots and containers.
- Hanging baskets.
- Greenhouses and nurseries.
- Installations using risers or Asta® Stakes where watering is required in a single direction.
Compatibility
- Designed for installation into compatible Antelco Asta® Stakes, rigid risers and other threaded irrigation fittings.
- The integral 4mm barb accepts standard 4mm ID (6mm OD) micro irrigation pipe.
- Compatible with Antelco, Grow Insane and other irrigation systems using compatible threaded fittings.
Installation
- Screw the emitter securely into a compatible Asta® Stake, rigid riser or threaded irrigation fitting.
- Connect standard 4mm ID (6mm OD) micro irrigation pipe to the integral 4mm barb.
- Position the emitter so the 180° spray pattern faces the area to be watered.
- Turn on the water supply.
- Rotate the cap to adjust the water output from shut-off, through drip irrigation, to the required 180° spray pattern.
